Hyundai KIA Smartstream G2.5 T-GDi G4KP/G4KR Engine Specs, Problems & Reliability

Hyundai/Kia Smartstream G2.5 T-GDi Engine Info

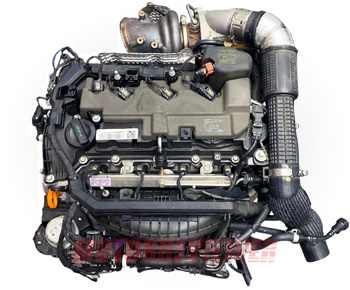

The Smartstream G2.5 T-GDI (G4KP and G4KR) is a 2.5-liter gasoline turbocharged inline four-cylinder engine produced by the Hyundai Motor Group since 2020. This engine is heavily based on the naturally aspirated version, called G4KN, which debuted a year earlier. The turbocharged 2.5L Smartstream engine also features the Theta III architecture as well as both direct (GDi) and multi-port (MPi) injection found in NA G4KN version. The Smartstream G2.5T is widely used across mid and large Hyundai, Kia, and Genesis SUVs and sedans such as the Sonata N Line, Santa Fe, Sorento, Palisade, Genesis G70, GV70, and GV80.

Smartstream G2.5 T-GDi Overview

The Smartstream G2.5T is built around an aluminum open-deck cylinder block with cylinder liners. It is similar to the G4KN block, with only beefier internal components and some differences outside. This engine also has reduced compression: 10:1 for FWD applications and 10.5:1 for others. Heads are identical: aluminum DOHC 16-valve cylinder heads with integrated exhaust manifold and hydraulic lash adjusters. The camshafts are driven by a single row timing chain. It also comes with countless variable valve technology for both intake and exhaust (D-CVVT). The exhaust camshaft also drives a high-pressure fuel pump used in the GDi system. The HP pump is mounted on top of the head cover made of plastic.

Like the G4KN, the turbocharged version uses a combined fuel injection system, including direct injection into the combustion chambers for efficiency, and a conventional port injection for longevity. What stands it apart is the electronically controlled BorgWarner turbocharger, bolted directly to the cylinder head. This turbo sends compressed air to the intake manifold through an air-to-air intercooler located in front of the vehicle. The engine comes with an electronic throttle and a modern ignition system, including individual coils and iridium spark plugs. The stock piping and intake manifold are made of plastic. Smartstream G2.5 turbo engine features a belt-driven water pump, but instead of a traditional thermostat, it has an integrated thermal management module (ITM) that not only regulates engine temperature, but also controls vehicle heating and air conditioning.

Smartstream G2.5 T-GDi engine comes in two versions: G4KP and G4KR. The G4KP is used in FWD/AWD applications where the engine sits side-to-side (transverse), while the G4KR is adopted for RWD vehicles where it is placed lengthwise (longitudinal). The G4KR, or Smartstream G2.5 FR T-GDi, is equipped with water-cooled intercooler, produces slightly more power, and it is mainly used in Genesis models and some Kia models, including the newest Kia Tasman pickup truck.

Engine Specs

Hyundai/Kia Smartstream G2.5 Turbo Problems and Reliability

The Smartstream G2.5 T-GDI engine is considered a significant improvement over the older Theta II engine, and for now, there have been no reports of any major failures and serious problems with this inline-four 2.5-liter turbo power unite. However, it is a relatively new engine and long-term reliability data is still gathering. But for now, let's take a look at some known issues with the 2.5L Smartstream turbo version at this moment.

ITM Reliability Issues

This engine comes with an integrated thermal management module, which is essentially a set of electronically controlled valves that manage the coolant flow rather than a mechanical thermostat. It is a complicated unit that was known for some reliability issues, especially within the first year or two of production.

Carbon Buildup Problem

The carbon deposit issue on intake valves is not common for engines that use both GDI and MPI systems. However, this turbocharged engine may suffer from high blow-by gases, which can put stress on the PCV system and introduce more oil into the intake. So, there is a potential for carbon build-up on the intake valves over time.

Fuel Injector Failures

Fuel injector problems are nothing new for modern engines with direct injection. This system is very sensitive to the quality of fuel and oil.

Smartstream G2.5T Longevity

At this moment, the Hyundai/Kia 2.5T-GDI Smartstream engine is considered a good, reliable, and durable motor with an expected lifespan of 200,000 miles or more with proper maintenance. If you want to avoid potential issues, change the oil every 3,000-5,000 miles, use full synthetic oil and premium gasoline only.
